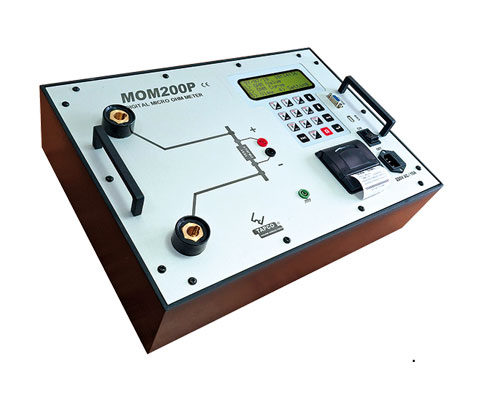

The complete toolbox for measuring contact resistance in the micro ohm range by applying high current to both ends.

Measurement of resistance of breakers and sectionners contacts, bus bars, sectionners, and conductors connections, cables, wires, and transfer lines conductors, generator graphite and electro motors, and in cohesion test of airplane fuselags, train railways, and resistance welding, and anywhere we want to measure conductor resistance in the extent of micro ohm/ milliohm.

Features:

-Applying current from 25A to 200ADC

-Measuring resistance from 1µΩ to 160mΩ

-Portable and light weight case

-Extremely reliable and easy to use

-PC control with MOMSOFT software

-Variable current flow: 25A to 200A with 1A accuracy

-maximum output voltage: 5V DC

-Measurement range: 1 micro ohm to 16000 micro ohm  with accuracy of 1 micro ohm, and 10 micro ohm to 160 milliohm with accuracy of 10 micro ohm

-Store up to 500 test results for resistance value

-Store up to 143 test results for curve of resistance

-System speed: 14.7MHz

-measurement fault: ±1digit+1%

-Input supply: 200V-240V AC/ 50 HZ

-maximum power consumption: 1100 VA

-maximum current consumption: 5A

-it has an internal printer

-it has serial port: RS232, USB

-Sampling of variable resistance as a result of time-based heat changing

-Getting breaker specifications from user and save them

-Curves enlargement

-Read saved tests from MOM200 and save them into computer

-Full bilanguage: English and Persian

Applications:

-Circuit breaker manufacturers

-Repair and maintenance of electrical power plant companies

-Electrical power plant EPC companies

-Electrical power labs
