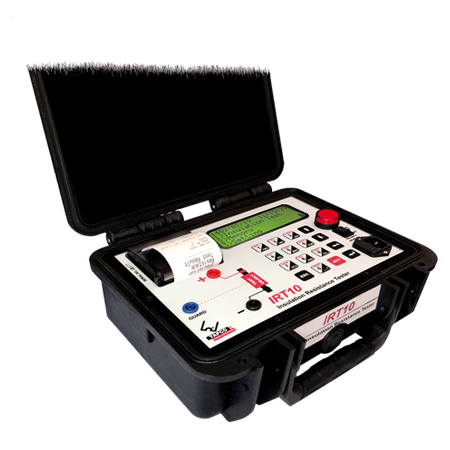

Insulation Resistance Tester IRT10 (Battery Operated)
The complete toolbox for testing and analyzing the insulation quality of electrical equipment
The quality of insulation in all electrical equipment is of particular importance. Insulators lose their efficiency due to environmental conditions and aging and exhaustion.
This may be reduced their electrical resistance, which decreases the safety of the system. Therefore, it is necessary to periodically examine the quality of the insulators to be repaired or replaced if needed.
IRT10 is a convenient and efficient device for testing and inspecting the quality of insulators and measuring their electrical resistance.

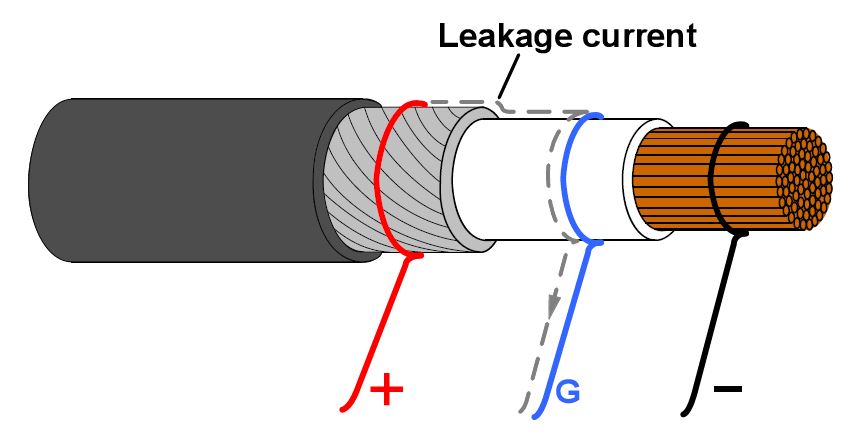

IRT10 applies the high voltage to individual electrical parts and measures the flow rate of insulation between them. The amount of flow depends on the conditions and characteristics of the insulation, and its amount is very small. This flow will be more than normal conditions in event of insulation damage.
The IRT10 can generate a voltage from 250VDC to 10KVDC adjustable and measure the electrical resistance of insulation up to 10TΩ. It is also possible to set the five standard voltages, including 500V, 1KV, 2.5KV, 5KV, 10KV.
Features
- - Up to 10KV and 10TΩ
- - Measuring insulation resistance from 500KΩ to 10TΩ
- - Adjustable Output Voltage from 250VDC to 10KVDC
- - Battery and main line operated with fast charge
- - Over 16 hour battery operation time
- - Impact, water and dust resistant
- - Portable, heavy-duty, and light weight case
- - Extremely reliable and easy to use
- - Storage capacity to handle over 430 test files
- - USB, WIFI connectivity
- - User-friendly mobile app.
- - Thermal printer
Applications
- - High power transformer manufacturers
- - Circuit breaker manufacturers
- - Repair and maintenance of electrical power plant companies
- - Electrical power plant EPC companies
- - Electrical power labs
- - Big factories e.g. Steel, petrochemicals, refineries, and...
- - Household electrical appliances manufacturers
